Ball Track Race Duplo Conveyor

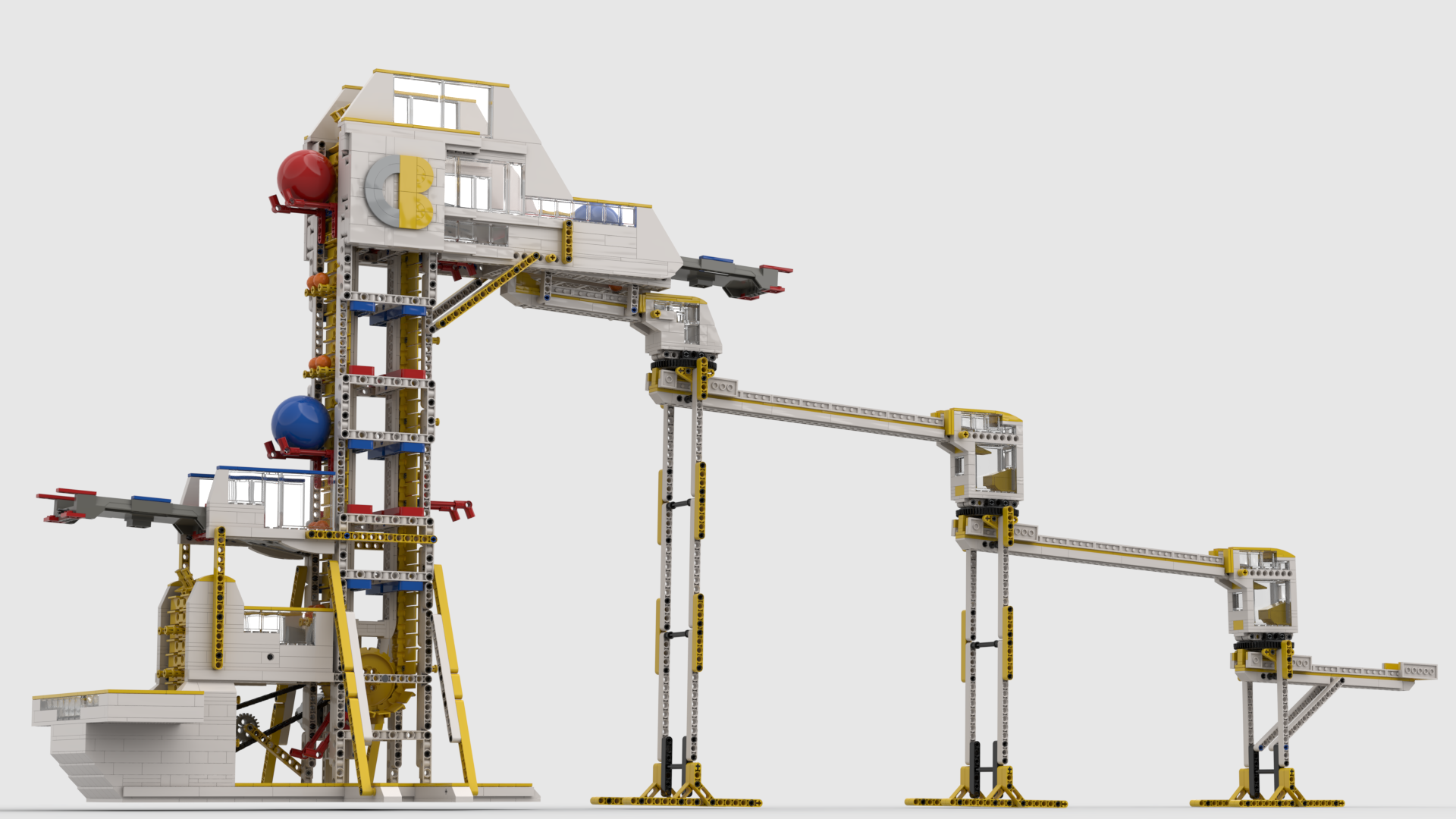

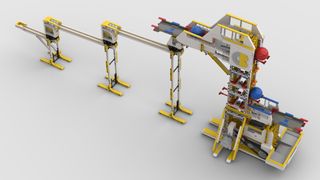

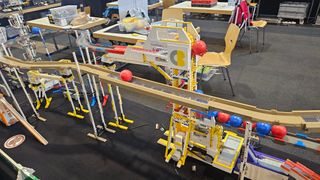

This module is the third in the Ball Track Race system that allows to create big marble runs that are part of a GBC loop and can be set up differently at every show. It can lift regular GBC balls and Duplo balls together in the same conveyor. The Duplo balls continue on the race track elements the Ball Track Race system is based on, while the GBC balls are filtered out and exit the module through a different ramp. The balls paths are color coded, where yellow is for the regular balls and red/blue is for the Duplo balls (which have these two colors, as well).

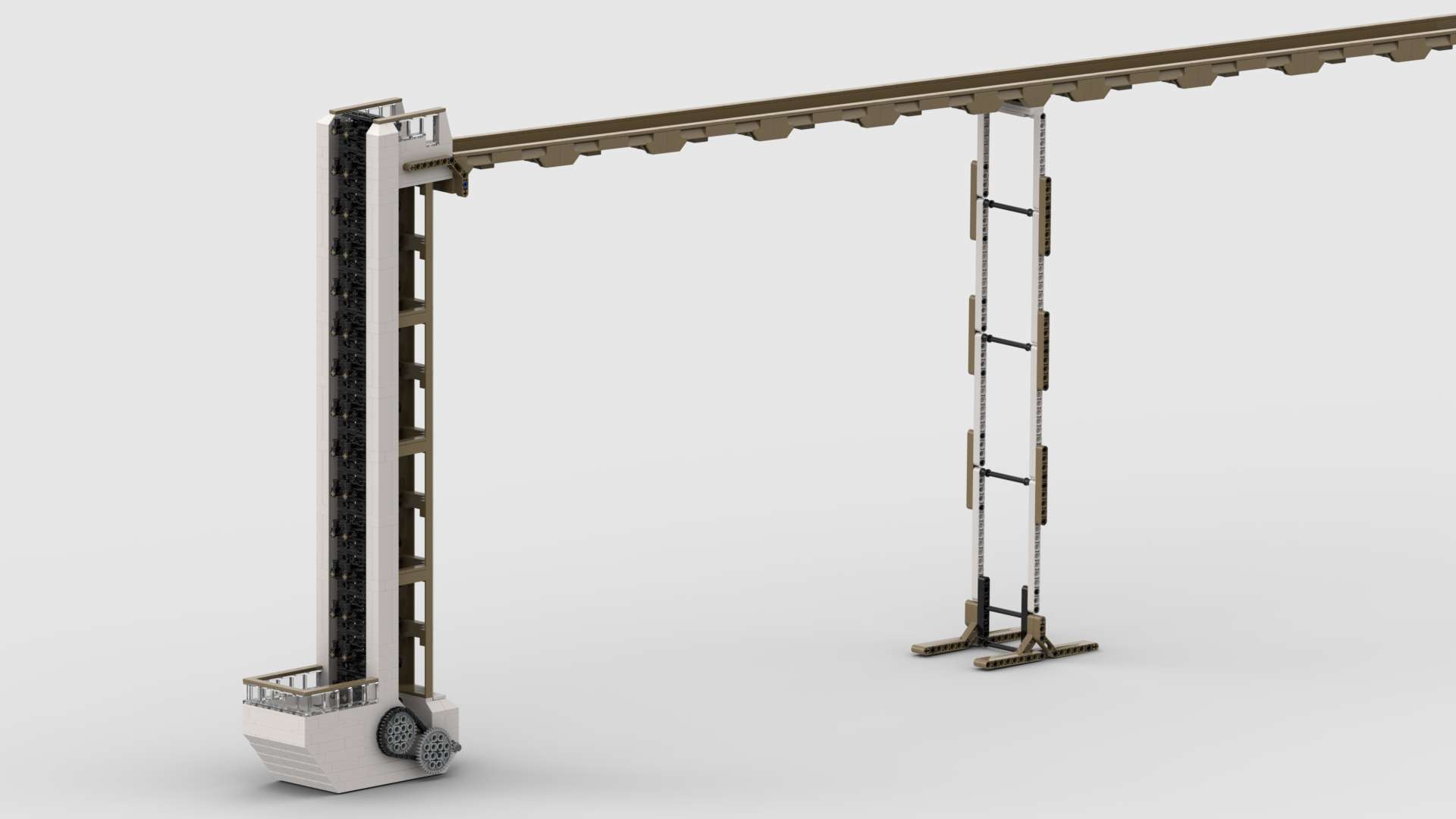

The race track of the Duplo balls can be joined with the race track transporting regular GBC balls coming from other lifting modules of the Ball Track Race system, so both types of balls run together for a section of the track. This modules also includes splitter elements that allow to separate both types of balls to different tracks again. Race track elements in dark gray with blue and red tiles are used for track sections used exclusively by Duplo balls, while regular GBC balls and sections with both types of balls use dark tan track element.
